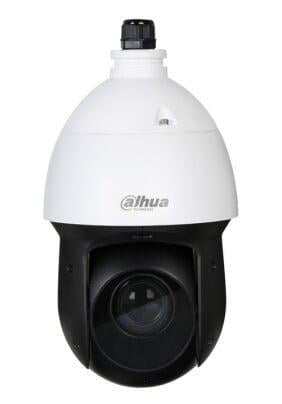

2MP 25x Starlight IR PTZ AI Network Camera
· 1/2.8” 2Megapixel CMOS
· Powerful 25x optical zoom
· Starlight technology
· Max. 50/60fps@1080P · Perimeter protection
· Support PoE+ · IR distance up to 100m
· SMD Plus
· IP66
AI series products adopt the most advanced AI technologies, including deep learning algorithms that primarily target people and vehicles, which provides higher flexibility and accuracy for end-users. This enables the Dahua AI series to offer various advanced applications such as Face Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc. The complete lineup of Dahua AI includes network (PTZ) cameras, network video recorders, servers, and more devices. Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way
DH-SD49225XA-HNR

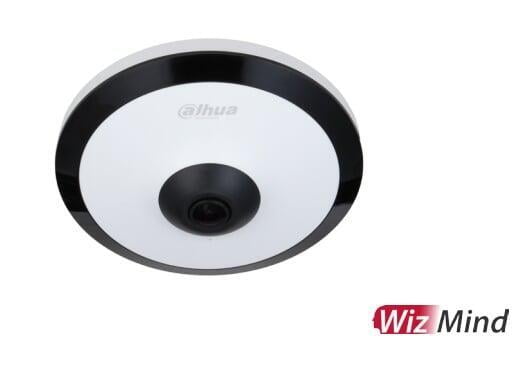

5MP WizMind IR Fisheye Network CAMERA
· 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
· Outputs max. 5MP (2592 × 1944) @25/30 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in efficient IR illuminator, and the max. illumination distance: 10 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
· 120dB WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire, people counting in area
· Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
· Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic
· 12V DC/PoE power supply, easy for installation
· Heat map for people counting. You can adjust the number of people, time threshold to generate a heat map, which can be exported.
DH-IPC-EW5541-AS

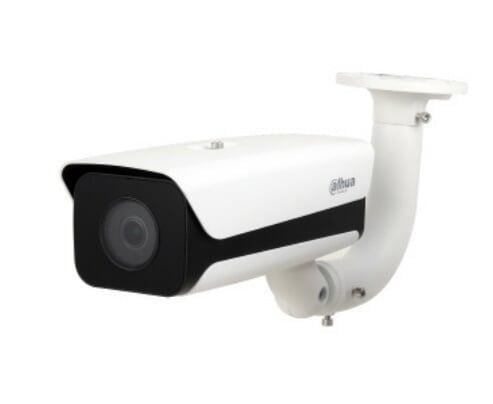

2 Megapixel Full HD AI Access ANPR Camera
· 1/2.8 inch 2Megapixel Progressive scan CMOS
· WDR, Day/Night(ICR), 3DNR,BLC, HLC
· H.265& H.264 dual-stream encoding
· Micro SD memory
· Powerful 2.7-13.5mm motorized lens and IR light, ideal for monitor ANPR distance 3-8m
· IP67, and superior performance for outdoor applications
· Embedded with LPR algorithm inside the camera
· Vehicle data structuring: license plate recognition, vehicle size, vehicle color detection and etc.
The 2-megapixel CMOS full HD AI access ANPR camera with the features as high color restoration, low illuminance and build-in IR light, can be used in parking and access control scenario. In standard entrance scenario(refer to the installation guide), It can detect the vehicles from the video with over 99% capture rate, recognize the plate in low speed less than 40kmh and structure the vehicle data with the embedded deep learning algorithm. Besides, with whitelist inside, this camera can control the barrier open by itself.
ITC215-PW4I-IRLZF27135

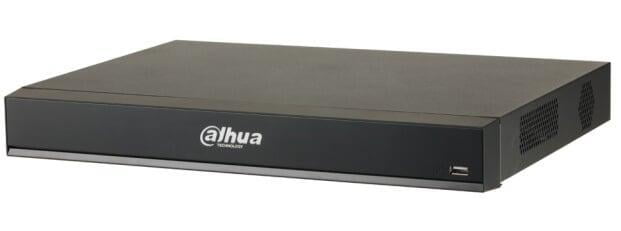

16Channel 1U AI Network Video Recorder
· 16 Channel IP video access
· Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
· Up to 4 Channel perimeter protection
· Up to 2 Channel video stream face recognition/8 channel picture stream face recognition ( with FD camera)
· Up to 12 face pictures /sec processing
· Up to 10 face databases with 20,000 face images in total
AI series products adopt the most advanced AI technologies, including deep learning algorithms that primarily target people and vehicles, which provides higher flexibility and accuracy for end-users. This enables the Dahua AI series to offer various advanced applications such as Face Recognition, ANPR, People Counting, traffic data statistics, etc. The complete lineup of Dahua AI includes network (PTZ) cameras, network video recorders, servers, and platform management products. Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way
DHI-NVR4216-I

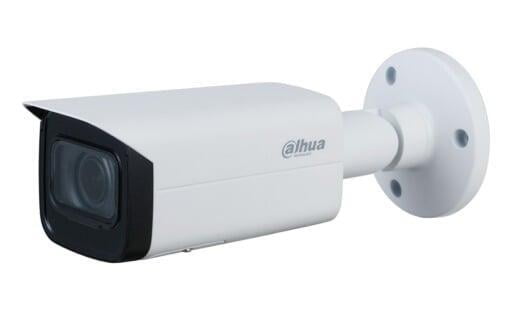

8MP Lite IR Vari-focal Bullet Network Camera
· 8MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
· Outputs max. 8MP (3840 × 2160) @15 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in IR LED, max IR distance: 60 m
· ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments · Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire
· Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal ac- cess, voltage detection
· Supports max. 256 GB Micro SD card
· 12V DC/POE power support
· IP67 protection
DH-IPC-HFW2831T-ZS-S2

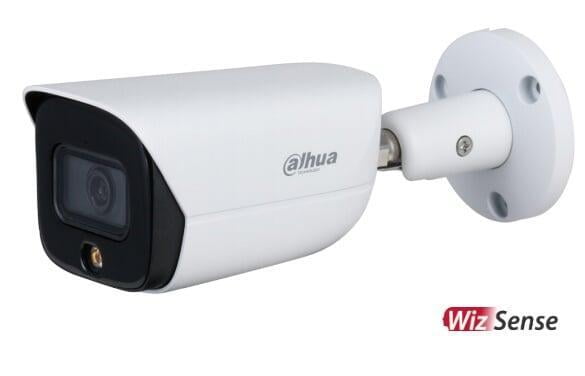

5MP Full-color Fixed-focal Warm LED Bullet WizSense Network Camera
· 5MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
· Outputs max. 5MP (2592 × 1944) @20 fps, and supports 4MP (2688 × 1520) @25/30 fps
· H.265 codec, high compression rate, low bit rate
· Built-in warm light, max. illumination distance: 30 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
· Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
· Alarm: 1 in, 1 out; Audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic
· 12V DC/PoE power supply, easy for installation
· IP67 protection
· SMD Plus
DH-IPC-HFW3549E-AS-LED
DAHUA CAMERA

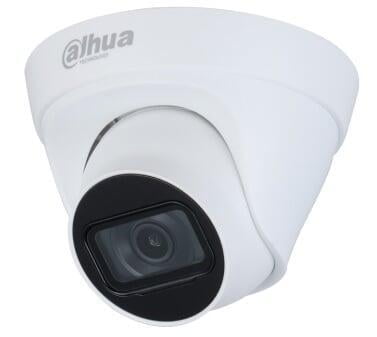

Entry Series 2.0MP Eyeball Network Camera
· 2MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
· Outputs max. 2MP (1920 × 1080p) @25/30 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in IR LED, max. IR distance: 30 m
· ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
· Rotation mode, DWDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
· Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
· 12V DC/PoE power support · IP67 protection
DH-IPC-HDW1230T1-S4

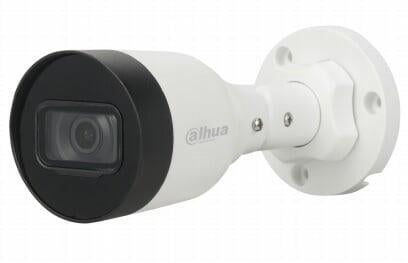

Entry Series 2.0MP Bullet Network Camera
· 2MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
· Outputs max. 2MP (1920 × 1080p) @25/30 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in IR LED, max. IR distance: 30 m
· ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
· Rotation mode, DWDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
· Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
· 12V DC/PoE power support · IP67 protection
DH-IPC-HFW1230T1-S4
2MP WDR IR Mini Dome Network Camera
· 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
· Outputs 2MP (1920 × 1080) @ 25/30 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in IR LED, max IR distance: 30 m
· ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire
· Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal ac- cess, voltage detection
· Supports max. 256 GB Micro SD card
· 12V DC/PoE power support
· IP67, IK10 protection grade
DH-IPC-HDBW2231E-S-S2

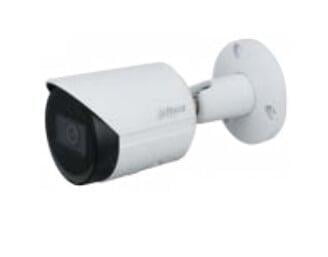

2MP WDR IR Bullet Network Camera
· 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
· Outputs max. 2MP (1920 × 1080) @25/30 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in IR LED, max. IR distance: 30 m
· ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire
· Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
· Supports max. 256 GB Micro SD card
· 12V DC/PoE power support
· IP67 protection
DH-IPC-HFW2231S-S-S2
4MP Entry IR Fixed-focal Eyeball Network Camera
· 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
· Outputs 4MP (2560 × 1440) @25/30 fps, and supports max. 4MP (2688 × 1520) @20 fps
· H.265 codec, high compression rate, ultra-low bit rate · Built-in IR LED, max. IR distance: 30 m
· ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
· Image flip, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
· Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access, voltage detection
· 12V DC/PoE power support
· IP67, protection
DH-IPC-HDW1431T1-S4
4MP Entry IR Fixed-focal Eyeball Netwok Camera
· 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
· Outputs 4MP (2560 × 1440) @25/30 fps, and supports max. 4MP (2688 × 1520) @20 fps
· H.265 codec, high compression rate, ultra-low bit rate · Built-in IR LED, max. IR distance: 30 m
· ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
· Image flip, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
· Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access, voltage detection
· 12V DC/PoE power support
· IP67, protection
DH-IPC-HFW1431T1-S4
4MP WDR IR Mini Dome Network Camera
· 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
· Outputs 4MP (2560 × 1440)@25/30 fps, max. supports 4MP (2688 × 1520) @ 20 fps
· H.265 codec, high compression rate, ultra-low bit rate · Built-in IR LED, max IR distance: 30 m
· ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire
· Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal ac- cess, voltage detection
· Supports max. 256 GB Micro SD card
· 12V DC/PoE power support
· IP67, IK10 protection grade
DH-IPC-HDBW2431E-S-S2
4MP WDR IR Bullet Network Camera
· 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
· Outputs 4MP (2560 × 1440)@25/30 fps, max. supports 4MP (2688 × 1520) @ 20 fps
· H.265 codec, high compression rate, ultra-low bit rate · Built-in IR LED, max IR distance: 30 m
· ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire
· Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal ac- cess, voltage detection
· Supports max. 256 GB Micro SD card
· 12V DC/PoE power support
· IP67, IK10 protection grade
DH-IPC-HFW2431E-S-S2

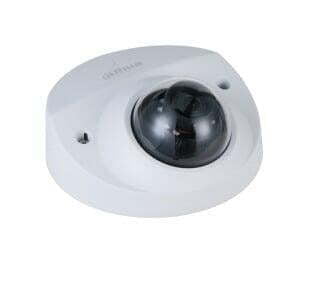

5MP Lite AI IR Fixed focal Dome Network Camera
· 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
· Outputs max. 5MP (2592 × 1944)@20 fps · H.265 codec, high compression rate, low bit rate
· Built-in IR LED, max. IR distance: 50 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire
· Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
· Supports max. 256 G Micro SD card, built-in Mic
· 12V DC/POE power support
· IP67, IK10 protection
· SMD
DH-IPC-HDBW3541F-AS-M

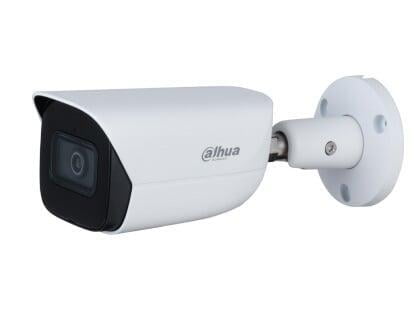

5MP Lite AI IR Fixed focal Bullet Network Camera
· 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
· Outputs max. 5MP (2592 × 1944)@20 fps · H.265 codec, high compression rate, low bit rate
· Built-in IR LED, max. IR distance: 50 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire
· Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
· Supports max. 256 G Micro SD card, built-in Mic
· 12V DC/POE power support
· IP67, IK10 protection
· SMD
DH-IPC-HFW3541E-SA
Network Recorder

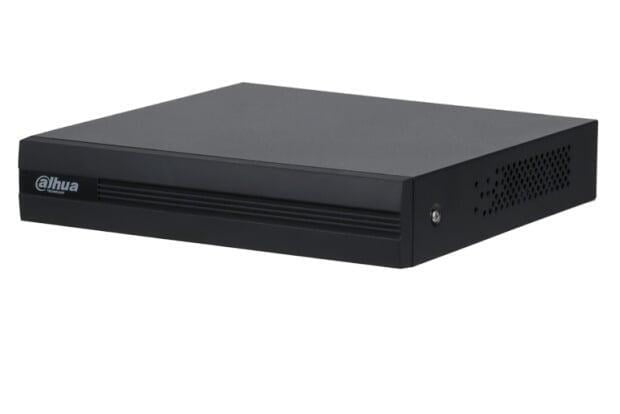

Lite Series Network Video Recorder
· New 4.0 user interface
· Smart H.265+/ Smart H.264+
· P2P remote surveillance, video play on mobile device
· 8–ch@1080P(30fps), self-adaptive decoding capability
· Supports mainstream cameras of ONVIF and RTSP protocol
· VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K
· Remote configuration and management of IPCs, such as setting pa rameters, acquiring information and upgrading IPCs of the same model in batches
· DHCP(Dynamic Host Configuration Protocol), HTTP(Hypertext Transfer Protocol), NTP(Network Time Protocol) and DDNS(Dynamic Domain Name System)
DHI-NVR4116HS-4KS2/L

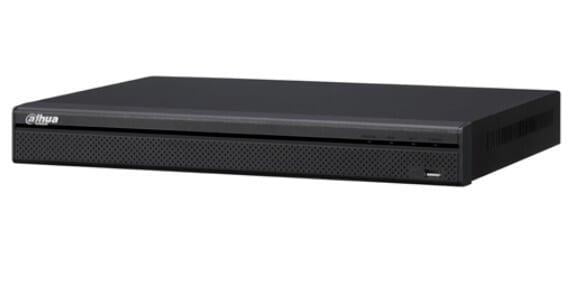

16/32Channel 1U 4K&H.265 Pro Network Video Recorder
· Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
· Max 320Mbps Incoming Bandwidth
· Up to 12MP Resolution for Preview and Playback
· HDMI/VGA simultaneous video output
· 3D intelligent positioning with Dahua PTZ camera
Dahua's NVR5000-4KS2 network video recorder offers a excellent performance and high recording quality for IP video surveillance applications. For applications where details are critical for identification, this professional NVR provides a powerful processor with up to 4K resolution. Additionally, the NVR features a mouse shortcut operation menu, remote management and control, centre storage, edge storage, and back up storage. Designed as a cost-effective, easy installation, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions. The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multi-user access and is compatible with ONVIF 2.4, enabling interoperability when combined with 4K cameras.
DHI-NVR5208/16/32-4KS2
